Thyroperoxidase inhibition leading to increased mortality via reduced anterior swim bladder inflation
Point of Contact
- Dries Knapen
- Lucia Vergauwen
- Evgeniia Kazymova
|Author status||OECD status||OECD project||SAAOP status|
|Under Development: Contributions and Comments Welcome||EAGMST Approved||1.35||Included in OECD Work Plan|
This AOP was last modified on July 16, 2022 18:37
|Thyroperoxidase, Inhibition||July 08, 2022 06:36|
|Decrease, Population growth rate||July 08, 2022 07:40|
|Thyroid hormone synthesis, Decreased||July 08, 2022 06:44|
|Thyroxine (T4) in serum, Decreased||July 08, 2022 06:52|
|Reduced, Anterior swim bladder inflation||September 03, 2021 13:11|
|Reduced, Swimming performance||September 08, 2021 06:12|
|Decreased, Triiodothyronine (T3)||July 08, 2022 07:22|
|Increased Mortality||July 08, 2022 07:32|
|Thyroperoxidase, Inhibition leads to TH synthesis, Decreased||July 08, 2022 07:51|
|TH synthesis, Decreased leads to T4 in serum, Decreased||July 08, 2022 08:05|
|T4 in serum, Decreased leads to Decreased, Triiodothyronine (T3)||July 08, 2022 08:14|
|Decreased, Triiodothyronine (T3) leads to Reduced, Anterior swim bladder inflation||September 08, 2021 09:46|
|Reduced, Anterior swim bladder inflation leads to Reduced, Swimming performance||September 08, 2021 09:59|
|Reduced, Swimming performance leads to Increased Mortality||September 08, 2021 10:05|
|Increased Mortality leads to Decrease, Population growth rate||July 08, 2022 08:29|
|Thyroperoxidase, Inhibition leads to T4 in serum, Decreased||July 08, 2022 08:33|
|T4 in serum, Decreased leads to Reduced, Anterior swim bladder inflation||September 08, 2021 09:56|
|Methimazole||November 29, 2016 18:42|
|Mercaptobenzothiazole||November 29, 2016 18:42|
|Propylthiouracil||November 29, 2016 18:42|
This AOP describes the sequence of events leading from thyroperoxidase inhibition to increased mortality via reduced anterior swim bladder inflation. The enzyme thyroperoxidase (TPO) is essential for the synthesis of thyroxine (T4) and triiodothyronine (T3) in the thyroid follicles. Inhibition of TPO reduces thyroid hormone (TH) levels. Thyroid hormones are critical in regulating developmental processes and thyroid hormone disruption can interfere with normal development. Swim bladder inflation is known to be under TH control (Brown et al., 1988; Liu and Chan, 2002). Many fish species have a swim bladder which is a gas-filled organ that typically consists of two chambers (Robertson et al., 2007). The posterior chamber inflates during early development in the embryonic phase, while the anterior chamber inflates during late development in the larval phase. Both the posterior and the anterior chamber have an important role in regulating buoyancy, and the anterior chamber has an additional role in hearing (Robertson et al., 2007). This AOP describes how inhibition of TPO results in decreased synthesis of T4 in the thyroid follicles. This reduces the availability of T4 for conversion to the more biologically active T3. Reduced T3 levels prohibit normal inflation of the anterior swim bladder chamber. Due to its role in regulating buoyancy, this results in reduced swimming performance. Since reduced swimming performance resuls in a decreased ability to forage and avoid predators, this reduces chances of survival. The final adverse outcome is a decrease of the population trajectory. Since many AOPs eventually lead to this more general adverse outcome at the population level, the more specific and informative adverse outcome at the organismal level, increased mortality, is used in the AOP title. Support for this AOP is mainly based on chemical exposures in zebrafish and fathead minnows (Nelson et al., 2016; Godfrey et al., 2017; Stinckens et al., 2016, 2020). Additional evidence of a link between reduced TH synthesis and reduced anterior chamber inflation is available from a study where a mutation was inserted in the gene coding for dual oxidase, an other enzyme that is important for TH synthesis (Chopra et al., 2019). This AOP is part of a larger AOP network describing how decreased synthesis and/or decreased biological activation of THs leads to incomplete or improper inflation of the swim bladder, leading to reduced swimming performance, increased mortality and decreased population trajectory (Knapen et al., 2018; Knapen et al., 2020; Villeneuve et al., 2018).
AOP Development Strategy

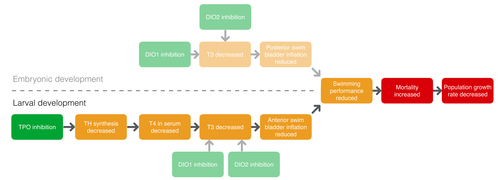

The larger AOP network describing the effect of deiodinase and thyroperoxidase inhibition on swim bladder inflation consists of 5 AOPs:
- Deiodinase 2 inhibition leading to increased mortality via reduced posterior swim bladder inflation: https://aopwiki.org/aops/155
- Deiodinase 2 inhibition leading to increased mortality via reduced anterior swim bladder inflation: https://aopwiki.org/aops/156
- Deiodinase 1 inhibition leading to increased mortality via reduced posterior swim bladder inflation : https://aopwiki.org/aops/157
- Deiodinase 1 inhibition leading to increased mortality via reduced anterior swim bladder inflation : https://aopwiki.org/aops/158
- Thyroperoxidase inhibition leading to increased mortality via reduced anterior swim bladder inflation: https://aopwiki.org/aops/159
The development of these AOPs was mainly based on a series of dedicated experiments (using a set of reference chemicals as prototypical stressors) in zebrafish and fathead minnow that form the core of the empirical evidence. Specific literature searches were used to add evidence from other studies, mainly in zebrafish and fathead minnow. No systematic review approach was applied.
Summary of the AOP
Molecular Initiating Events (MIE)
Key Events (KE)
Adverse Outcomes (AO)
|Type||Event ID||Title||Short name|
|MIE||279||Thyroperoxidase, Inhibition||Thyroperoxidase, Inhibition|
|KE||277||Thyroid hormone synthesis, Decreased||TH synthesis, Decreased|
|KE||281||Thyroxine (T4) in serum, Decreased||T4 in serum, Decreased|
|KE||1003||Decreased, Triiodothyronine (T3)||Decreased, Triiodothyronine (T3)|
|KE||1007||Reduced, Anterior swim bladder inflation||Reduced, Anterior swim bladder inflation|
|KE||1005||Reduced, Swimming performance||Reduced, Swimming performance|
Relationships Between Two Key Events (Including MIEs and AOs)
|Thyroperoxidase, Inhibition leads to TH synthesis, Decreased||adjacent||High||Low|
|TH synthesis, Decreased leads to T4 in serum, Decreased||adjacent||Moderate||Low|
|T4 in serum, Decreased leads to Decreased, Triiodothyronine (T3)||adjacent||Moderate||Moderate|
|Decreased, Triiodothyronine (T3) leads to Reduced, Anterior swim bladder inflation||adjacent||Moderate||Moderate|
|Reduced, Anterior swim bladder inflation leads to Reduced, Swimming performance||adjacent||Moderate||Low|
|Reduced, Swimming performance leads to Increased Mortality||adjacent||Moderate||Low|
|Increased Mortality leads to Decrease, Population growth rate||adjacent||Moderate||Moderate|
|Thyroperoxidase, Inhibition leads to T4 in serum, Decreased||non-adjacent||High||Low|
|T4 in serum, Decreased leads to Reduced, Anterior swim bladder inflation||non-adjacent||Moderate||Moderate|
Life Stage Applicability
Overall Assessment of the AOP
The attached document includes:
- Support for biological plausibility of KERs
- Support for essentiality of KEs
- Empirical support for KERs
- Dose and temporal concordance table covering the larger AOP network
Overall, the weight of evidence for the sequence of key events laid out in the AOP is moderate to high. Nonetheless, the exact underlying mechanism of TH disruption leading to impaired swim bladder inflation is not understood.
Domain of Applicability
Taxonomic: Organogenesis of the swim bladder begins with an evagination from the gut. In physostomous fish, a connection between the swim bladder and the gut is retained. In physoclystous fish, once initial inflation by gulping atmospheric air at the water surface has occurred, the swim bladder is closed off from the digestive tract and swim bladder volume is regulated by gas secretion into the swim bladder (Woolley and Qin, 2010). This AOP is currently mainly based on experimental evidence from studies on zebrafish and fathead minnows, physostomous fish with a two-chambered swim bladder. This AOP is not applicable to fish that do not have a second swim bladder chamber that inflates during larval development, e.g., the Japanese rice fish (Oryzias latipes).
Life stage: The current AOP is applicable to the larval life stage, the period in which the anterior chamber of the swim bladder inflates (21 days post fertilization in zebrafish).
Sex: All key events in this AOP are plausibly applicable to both sexes. Sex differences are not often investigated in tests using early life stages of fish. In Medaka, sex can be morphologically distinguished as soon as 10 days post fertilization. Females appear more susceptible to thyroid‐induced swim bladder dysfunction compared with males (Godfrey et al., 2019). For zebrafish and fathead minnow, it is currently unclear whether sex-related differences are important in determining the magnitude of the changes across the sequence of events in this AOP. Different fish species have different sex determination and differentiation strategies. Zebrafish do not have identifiable heteromorphic sex chromosomes and sex is determined by multiple genes and influenced by the environment (Nagabhushana and Mishra, 2016). Zebrafish are undifferentiated gonochorists since both sexes initially develop an immature ovary (Maack and Segner, 2003). Immature ovary development progresses until approximately the onset of the third week. Later, in female fish immature ovaries continue to develop further, while male fish undergo transformation of ovaries into testes. Final transformation into testes varies among male individuals, however finishes usually around 6 weeks post fertilization. Since the anterior chamber inflates around 21 days post fertilization in zebrafish, sex differences are expected to play a minor role in the current AOP. Fathead minnow gonad differentiation also occurs during larval development. Fathead minnows utilize a XY sex determination strategy and markers can be used to genotype sex in life stages where the sex is not yet clearly defined morphologically (Olmstead et al., 2011). Ovarian differentiation starts at 10 dph followed by rapid development (Van Aerle et al., 2004). At 25 dph germ cells of all stages up to the primary oocytes stage were present and at 120 dph, vitellogenic oocytes were present. The germ cells (spermatogonia) of the developing testes only entered meiosis around 90–120 dph. Mature testes with spermatozoa are present around 150 dph. Since the anterior chamber inflates around 14 days post fertilization (9 dph) in fathead minnows, sex differences are expected to play a minor role in the current AOP.
Essentiality of the Key Events
Overall, the confidence in the supporting data for essentiality of KEs within the AOP is moderate. There is indirect evidence that reduced thyroid hormone synthesis causes reduced anterior swim bladder inflation from a study where a similar MIE was targeted: Chopra et al. (2019) showed that knockdown of dual oxidase, important for thyroid hormone synthesis, reduced anterior swim bladder inflation. It should be noted that dual oxidase also plays a role in oxidative stress. Additionally, there is indirect evidence from deiodinase knockdowns supporting the downstream part of the AOP linking decreased T3 levels to reduced swim bladder inflation (targeted at posterior chamber inflation, not specifically at anterior chamber inflation). There is also evidence that alleviation of the effect on anterior chamber inflation reduces the effect on swimming performance.
Biological plausibility: see Table. Overall, the weight of evidence for the biological plausibility of the KERs in the AOP is moderate since there is empirical support for an association between the sets of KEs and the KERs are plausible based on analogy to accepted biological relationships, but scientific understanding is not completely established.
Empirical support: see Table. Overall, the empirical support for the KERs in the AOP is moderate since dependent changes in sets of KEs following exposure to several specific stressors has been demonstrated, with limited evidence for dose and temporal concordance and some uncertainties.
Known Modulating Factors
There is some level of quantitative understanding that can form the basis for development of a quantitative AOP. Quantitative relationships between reduced T4 and reduced T3, and between reduced T3 and reduced anterior chamber inflation were established. The latter is particularly critical for linking impaired swim bladder inflation to TH disruption.
Considerations for Potential Applications of the AOP (optional)
A growing number of environmental pollutants are known to adversely affect the thyroid hormone system, and major gaps have been identified in the tools available for the identification, and the hazard and risk assessment of these thyroid hormone disrupting chemicals. Villeneuve et al. (2014) discussed the relevance of swim bladder inflation as a potential key event and endpoint of interest in fish tests. Knapen et al. (2020) provide an example of how the adverse outcome pathway (AOP) framework and associated data generation can address current testing challenges in the context of fish early-life stage tests, and fish tests in general. A suite of assays covering all the essential biological processes involved in the underlying toxicological pathways can be implemented in a tiered screening and testing approach for thyroid hormone disruption, using the levels of assessment of the OECD’s Conceptual Framework for the Testing and Assessment of Endocrine Disrupting Chemicals as a guide. Specifically, for this AOP, thyroperoxidase inhibition can be assessed using an in chemico assay, measurements of T4 and T3 levels could be added to the Fish Embryo Acute Toxicity (FET) test (OECD TG 236), the Fish Early Life Stage Toxicity (FELS) Test (OECD TG210) and the Fish Sexual Development Test (FSDT), and assessments of anterior chamber inflation and swimming performance could be added to the FELS Test and FSDT.
Thyroid hormone system disruption causes multiple unspecific effects. Addition of TH measurements could aid in increasing the diagnostic capacity of a battery of endpoints since they are specific to the TH system. A battery of endpoints would ideally include the MIE, the AO and TH levels as the causal link. It is also in this philosophy that TH measurements are currently being considered as one of the endpoints in project 2.64 of the OECD TG work plan, “Inclusion of thyroid endpoints in OECD fish Test Guidelines”. While thyroid hormone measurements showed low levels of variation and were highly predictive of downstream effects in dedicated experiments to support this AOP, more variability may be present in other studies. Because of the rapid development in fish, it is important to compare thyroid hormone levels within specific developmental stages. For example, clear changes in thyroid hormone levels have been observed in zebrafish at 5, 14, 21 and 32 dpf (Stinckens et al., 2016; Stinckens et al., 2020) and in fathead minnows at 4, 6, 10, 14, 18 and 21 dpf (Nelson et al., 2016; Cavallin et al., 2017) using liquid chromatography tandem mass spectrometry (LC−MS/MS).
