Title

Each AOP should be given a descriptive title that takes the form “MIE leading to AO”. For example, “Aromatase inhibition [MIE] leading to reproductive dysfunction [AO]” or “Thyroperoxidase inhibition [MIE] leading to decreased cognitive function [AO]”. In cases where the MIE is unknown or undefined, the earliest known KE in the chain (i.e., furthest upstream) should be used in lieu of the MIE and it should be made clear that the stated event is a KE and not the MIE. More help

Androgen receptor agonism leading to male-biased sex ratio

Short name
A short name should also be provided that succinctly summarises the information from the title. This name should not exceed 90 characters. More help
AR agonism leading to male-biased sex ratio

Graphical Representation

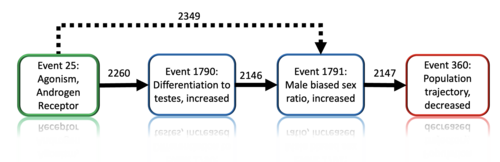

A graphical summary of the AOP listing all the KEs in sequence, including the MIE (if known) and AO, and the pair-wise relationships (links or KERs) between those KEs should be provided. This is easily achieved using the standard box and arrow AOP diagram (see this page for example). The graphical summary is prepared and uploaded by the user (templates are available) and is often included as part of the proposal when AOP development projects are submitted to the OECD AOP Development Workplan. The graphical representation or AOP diagram provides a useful and concise overview of the KEs that are included in the AOP, and the sequence in which they are linked together. This can aid both the process of development, as well as review and use of the AOP (for more information please see page 19 of the Users' Handbook).If you already have a graphical representation of your AOP in electronic format, simple save it in a standard image format (e.g. jpeg, png) then click ‘Choose File’ under the “Graphical Representation” heading, which is part of the Summary of the AOP section, to select the file that you have just edited. Files must be in jpeg, jpg, gif, png, or bmp format. Click ‘Upload’ to upload the file. You should see the AOP page with the image displayed under the “Graphical Representation” heading. To remove a graphical representation file, click 'Remove' and then click 'OK.'  Your graphic should no longer be displayed on the AOP page. If you do not have a graphical representation of your AOP in electronic format, a template is available to assist you.  Under “Summary of the AOP”, under the “Graphical Representation” heading click on the link “Click to download template for graphical representation.” A Powerpoint template file should download via the default download mechanism for your browser. Click to open this file; it contains a Powerpoint template for an AOP diagram and instructions for editing and saving the diagram. Be sure to save the diagram as jpeg, jpg, gif, png, or bmp format. Once the diagram is edited to its final state, upload the image file as described above. More help

Authors

List the name and affiliation information of the individual(s)/organisation(s) that created/developed the AOP. In the context of the OECD AOP Development Workplan, this would typically be the individuals and organisation that submitted an AOP development proposal to the EAGMST. Significant contributors to the AOP should also be listed. A corresponding author with contact information may be provided here. This author does not need an account on the AOP-KB and can be distinct from the point of contact below. The list of authors will be included in any snapshot made from an AOP. More help

Kelvin J. Santana Rodriguez, Oak Ridge Institute for Science and Education, U.S. Environmental Protection Agency, Great Lakes Ecology Divison, Duluth, MN

Point of Contact

Indicate the point of contact for the AOP-KB entry itself. This person is responsible for managing the AOP entry in the AOP-KB and controls write access to the page by defining the contributors as described below. Clicking on the name will allow any wiki user to correspond with the point of contact via the email address associated with their user profile in the AOP-KB. This person can be the same as the corresponding author listed in the authors section but isn’t required to be. In cases where the individuals are different, the corresponding author would be the appropriate person to contact for scientific issues whereas the point of contact would be the appropriate person to contact about technical issues with the AOP-KB entry itself. Corresponding authors and the point of contact are encouraged to monitor comments on their AOPs and develop or coordinate responses as appropriate.  More help
Evgeniia Kazymova   (email point of contact)

Contributors

List user names of all  authors contributing to or revising pages in the AOP-KB that are linked to the AOP description. This information is mainly used to control write access to the AOP page and is controlled by the Point of Contact.  More help
  • Dan Villeneuve
  • Kelvin Santana Rodriguez
  • Gerald Ankley
  • Evgeniia Kazymova

Status

The status section is used to provide AOP-KB users with information concerning how actively the AOP page is being developed, what type of use or input the authors feel comfortable with given the current level of development, and whether it is part of the OECD AOP Development Workplan and has been reviewed and/or endorsed. “Author Status” is an author defined field that is designated by selecting one of several options from a drop-down menu (Table 3). The “Author Status” field should be changed by the point of contact, as appropriate, as AOP development proceeds. See page 22 of the User Handbook for definitions of selection options. More help
Author status OECD status OECD project SAAOP status
Open for citation & comment
This AOP was last modified on May 08, 2022 11:33
The date the AOP was last modified is automatically tracked by the AOP-KB. The date modified field can be used to evaluate how actively the page is under development and how recently the version within the AOP-Wiki has been updated compared to any snapshots that were generated. More help

Revision dates for related pages

Page Revision Date/Time
Agonism, Androgen receptor March 20, 2017 17:44
Increased, Differentiation to Testis May 05, 2022 16:31
Increased, Male Biased Sex Ratio May 05, 2022 13:40
Decrease, Population growth rate March 29, 2022 11:50
Agonism, Androgen receptor leads to Increased, Differentiation to Testis April 12, 2021 10:24
Agonism, Androgen receptor leads to Increased, Male Biased Sex Ratio April 12, 2021 09:31
Increased, Differentiation to Testis leads to Increased, Male Biased Sex Ratio August 23, 2021 11:55
Increased, Male Biased Sex Ratio leads to Decrease, Population growth rate May 05, 2022 11:17
17beta-Trenbolone November 29, 2016 18:42
Chemical:33664 17-Methyltestosterone March 23, 2021 13:34
5alpha-Dihydrotestosterone March 14, 2017 12:44
Methyldihydrotestosterone May 07, 2021 15:36
11-Keto-testosterone May 07, 2021 15:36

Abstract

In the abstract section, authors should provide a concise and informative summation of the AOP under development that can stand-alone from the AOP page. Abstracts should typically be 200-400 words in length (similar to an abstract for a journal article). Suggested content for the abstract includes the following: The background/purpose for initiation of the AOP’s development (if there was a specific intent) A brief description of the MIE, AO, and/or major KEs that define the pathway A short summation of the overall WoE supporting the AOP and identification of major knowledge gaps (if any) If a brief statement about how the AOP may be applied (optional). The aim is to capture the highlights of the AOP and its potential scientific and regulatory relevance More help

This adverse outcome pathway links  androgen receptor agonism in teleost fish during gonadogenesis to male-biased sexual differentiation and consequently, reduced population growth rate. Sex determination in teleost fishes is highly plastic; it can be genetically or environmentally influenced. Species with environmentally-based sex determination in particular can be very sensitive to environmental pollutants during the period of differentiation. Exogenous hormones are of ecological concern because they have the potential to alter gonad development and sex differentiation. Activation of the androgen receptor (AR) by endogenous androgens plays a crucial role in normal sex differentiation, sexual maturation, and spermatogenesis in vertebrates and inappropirate signaling by exogenous AR agonists can disrupt theses processes. For example, studies have shown that during early development in some teleost species, exposure to androgenic steroids can induce complete gonadal sex inversion, resuting in male-biased sex ratios. This can lead to impacts on population growth rates due to the decreased number of reproductively viable females in the population.
